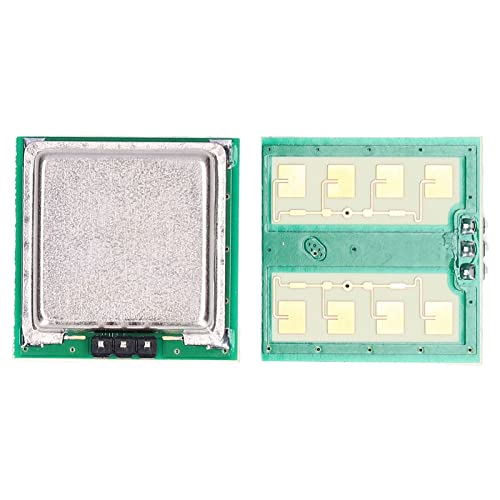

Item Type: Microwave Radar Sensor ModuleMaterial: PCBPurpose: Speed information detection of close targetsWorking Frequency: 24.00 ~ 24.25GHzOutput Power: +14dBmAntenna Beam Width: 80°/32°Power Consumption: +5V/29mAProduct Size: Approx. 25 x 25mm / 0.98 x 0.98inOperating Distance: Approx. 15meter / 49.2ftHow to Use: No. Pin Name Description 1 VCC Power supply 2 IF Intermediate frequency signal 3 GND Ground
INDEPENDENT TRANSMITTING AND RECEIVING CHANNELS: With independent transmitting and receiving channels, and a single IF output, very stable
INDEPENDENT TRANSMITTING AND RECEIVING CHANNELS: With independent transmitting and receiving channels, and a single IF output, very stable
PLANAR MICROSTRIP ANTENNA: 24GHz band single channel radar transceiver adopt planar microstrip antenna structure, beam angle is 80°/32°
SPEED INFORMATION DETECTION: Mainly used for speed information detection of close targets, automatic door sensors, microwave induction switches, intelligent light control systems, and non intrusion detection
HIGH SENSITIVITY, HIGH FLEXIBILITY: Come with high sensitivity, high flexibility, low cost, operating distance is 15 meters
PENETRATE NON METALLIC OBJECTS: Can penetrate non metallic objects, such as plates, glass, plastics, fabrics, etc., unless blocked by concrete wall or metal plates
